Tosoh AIA-360

Configuration Guide

Stage One: Connection Configuration

  1. Navigate to the Comm page: Menu > Special Menu > Comm
  2. Adjust Setting to the following:
    • Protocol: Transparent
    • Data Length: 8
    • Parity Check: None
    • Stop Bit Length: 1
    • Baud Rate: 9600

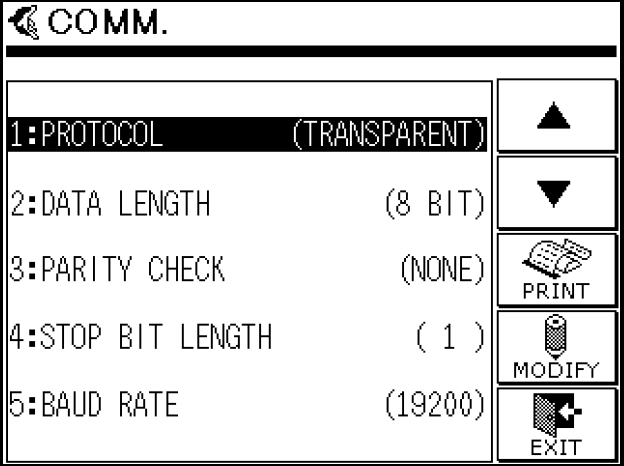

Tosoh AIA-360 Configuration Guide Screen_Shot_2018-11-06_at_14



  1. Navigate to the Comm page: Menu > Special Menu > System Spec  Tosoh AIA-360 Configuration Guide Menu_photo_1

        Tosoh AIA-360 Configuration Guide Menu_photo_2

   2. Adjust Setting to the following:

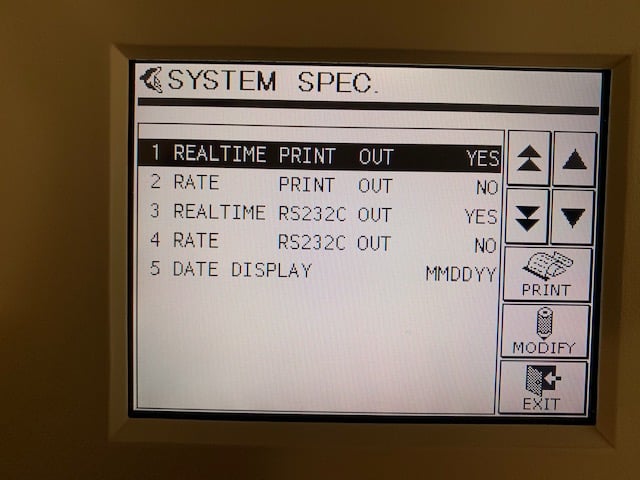

  • REALTIME RS232C OUT: YES    Tosoh AIA-360 Configuration Guide Menu_photo_3

Stage Two: Lantronix Configuration

  1. Connect the Lantronix xDirect directly to the RS232 Port on the rear of the Tosoh AIA-360.
  2. Follow the Lantronix xDirect configuration guide to correctly configure the adapter to connect to your network.

Stage Three: Add Device to Relaylink

To add the Tosoh AIA-360 to the Relaylink follow the Add Ethernet device to Relaylink guide

Note: Relaymed supports this date format MM/DD/YY HH:MM. To check the date setting, go to SYSTEM SPEC. menu item and confirm that DATE DISPLAY is set to MMDDYY.
