To configure the Sysmex XP-300 to connect to Relaymed the following configuration stages are required:

1. Sysmex XP-300 Host Output Configuration.
2. Connection Configuration of Sysmex XP-300i.
3. Add device to Relaylink.

Stage One: Host Output Configuration

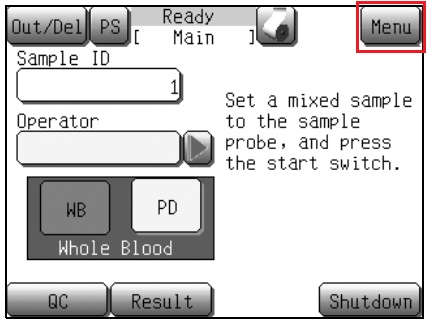

Step One: From the Sysmex XP-300 Home screen press the "Menu" button.

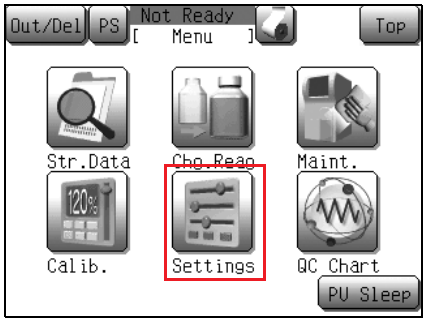

Step Two: From the Main Menu press the "Settings" button.

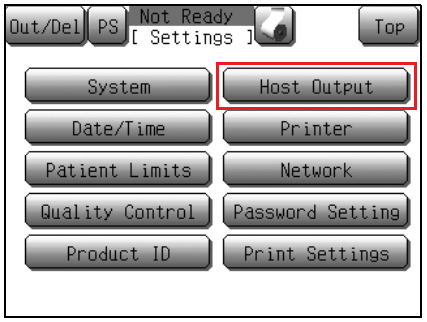

Step Three: From the Settings Menu, press the "Host Output" button.

Step Four: On the "Host Output" screen configure the following options:

Note: To access additional options use the "Left Arrow" buttons.

• Connect: LAN
• Automatic Output: Enable
• Format: ASTM
• ASTM Rev: 1381-02 * IMPORTANT *

Step Five: Press "Save" to store the "Host Output" configuration.

Step Six: Press "OK" on Confirmation screen to Save the configuration and return to the Home Screen.

Stage Two: Connection Configuration

Step One: From the Sysmex XP-300 Home screen press the "Menu" button.

Step Two: From the Main Menu press the "Settings" button.

Step Three: From the Settings Menu, press the "Host Output" button.

Step Four: On the "Network" screen configure the following options:

Note: To access additional options use the "Left Arrow" buttons.

• XP-300 configuration:
  • IP Address: Static IP address allocated to device.
  • Subnet Mask: Appropriate mask for your network.
  • Default Gateway: Appropriate gateway for your network.
  •

Click the right arrow to continue.

• Host configuration:
  • IP Address: Static IP address allocated to Relaylink host.
  • Port Number: Port used to communicate with Relaylink.

Step Five: Press "Save" to store the "Host Output" configuration.

Step Six: Press "OK" on Confirmation screen to Save the configuration and return to the Home Screen.

Step Seven: Check an Ethernet cable is connected to the correct LAN socket on the device and an available network port.

Stage Three: Add Device to Relaymed Software Agent

To add the Sysmex XP-300 to Relaymed you'll need access to your Software Agent. From there just click "Add Device".
