Sysmex XN-L Series Configuration Guide

Step 0: Before you start

This configuration guide is applicable to all Sysmex XN-L Series devices: XN-330, XN-350, XN-450 and XN-550
Make sure you have the admin user credentials to login to the device.
Admin pass is m145m

Step 1: Add device to the Relaylink

Follow the Add Ethernet device to Relaylink guide

Step 2: Connect device to the network

Connect the device to your internal network using an Ethernet cable.

Step 3: Setup the device

From the Menu, select Settings, Output Settings, HOST:

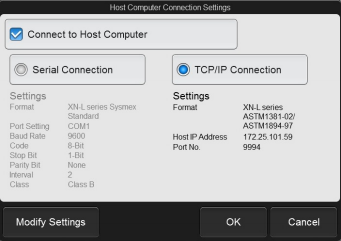

Select Modify Settings
- Format: ASTM E1381-02
- Host IP address: Relaylink host IP
- Port: Port defined when device added to the Relaylink (Step 1)

Quality Controls Setup

Please Note: This settings is required to have QC sent and processed by Relaymed.
It should not affect the data transfer to Insight (Sysmex's web-based Interlaboratory Quality Assessment Program (IQAP)).

In order for Relaymed to process Quality Controls "QC Sample Number" (e.g "QC-123456") format should be used. To enable this, please use the following settings:
Menu, select Settings, select QC Setting:

Select QC Chart Data Auto Output Settings
Under Explorer Screen section, select Host Computer (HC)

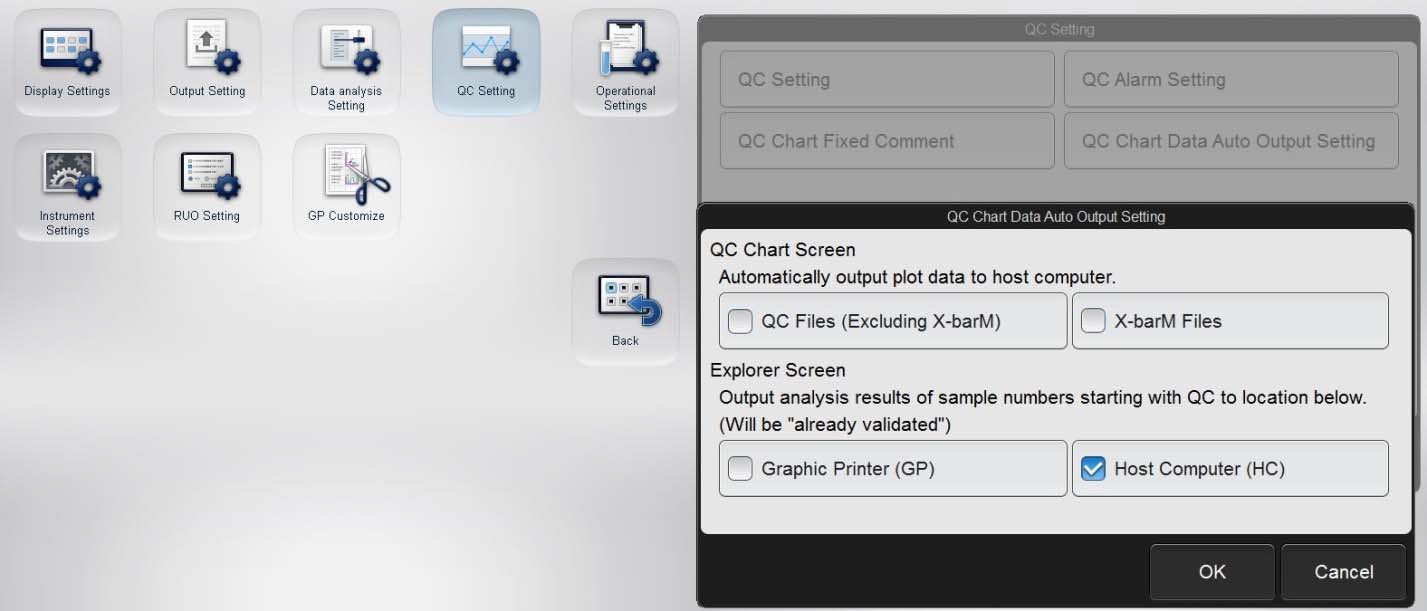

Make sure that is the only option selected, as in the screenshot below:

Step 4: Send a test through

To verify the setup works send a test from the device to Relaymed.

Note:

A barcode scanner can be used to input the MRN. This is usually used for the sample Id but we have configured the device integration to accept the barcode input as the MRN.

WARNING - If a Sample Id is scanned but an MRN is not manually entered then the sample Id will be taken as the MRN.

Common Issues:

Time Out Error: Generally when you get this error the Symex is trying to actively look for orders. Symex technical support will need to disable this function.
