Setting Up Barcode Label Printing in athenaOne

Prerequisites

1. Dymo Label printer needs to be installed (via "ADM" - athenaNet Device Manager)
2. Dymo Label 30336 - successfully used in testing

Stage One: Build the label

Step 1: Go to Clinical Admin

Step 2: Clinical Paper Forms

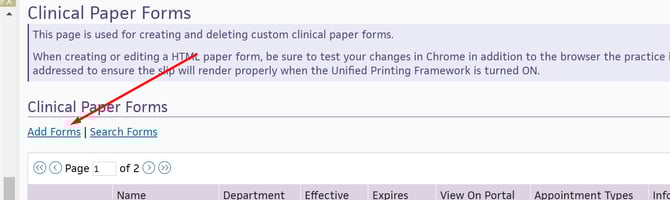

Step 3: Add Forms

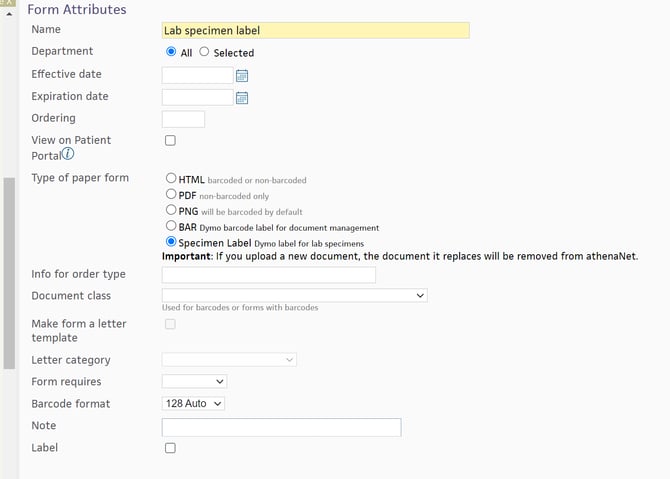

Step 4: Add/Select Form Attributes

• Name: Enter the label name
• Type of paper form: Select "Specimen Label"
• Barcode format: 128 Auto

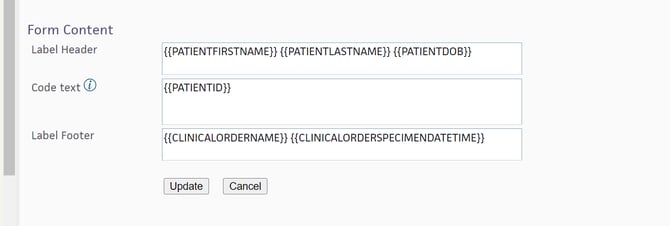

Step 5: Form Content

Enter the Magic words that suit your lab's workflow

• Code text:

  • Note: This value is required for the workflow with Relaymed



Step 6: Click "Update" then "Save"

Stage Two: Perform "Order Route" label mapping

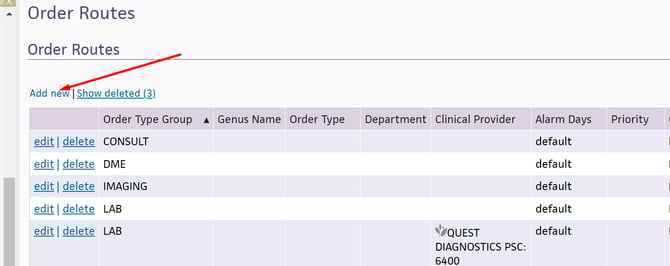

Step 1: Navigate to the Order Routes page

Step 2: Click "edit" next to the Order Type Group that is intended for the Relaymed interface. In this case, "Lab"

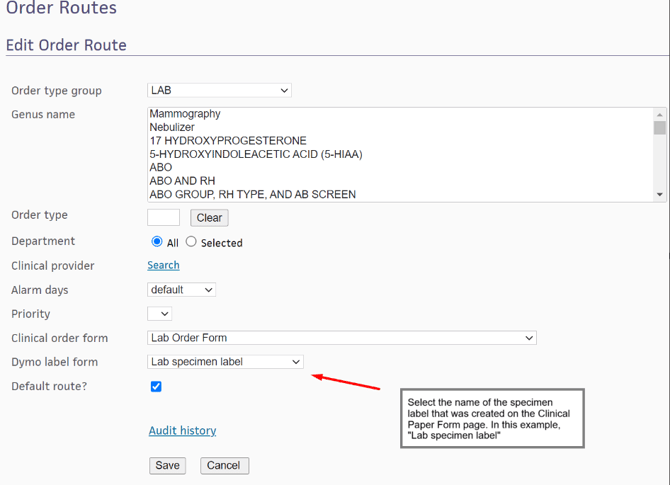

Step 3: Edit Order Route

• Dymo Label Form: Select the name of the specimen label that was created on the Clinical Paper Form page. In this example, "Lab specimen label"

Step 4: Click Save

Stage Three: Print the label from an order

Step 1: Navigate to the lab order document
Step 2: Select "Office" next to Specimen Collection
Step 3: Select the Document specimen hyperlink next to Specimen

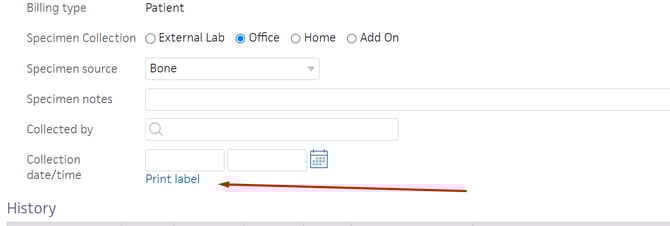

Step 4: Select Print label
