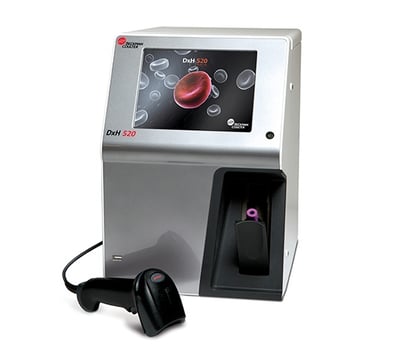

Beckman Coulter DxH 520

Configuration Guide

 Step 1: Add device to the Relaymed Software Agent

To add the Beckman Coulter DxH to the Relaymed Software Agent follow the Add Ethernet device to Relaymed Software Agent guide

Step 2: Connect device to the network

  • Connect with an Ethernet cable to the internal network

Step 3: Setup the device

  1. Select Screenshot_2020-03-31_at_14.57.35.png>Screenshot_2020-03-31_at_14.57.42.png.
  2. From the LIS Setup screen, select  Screenshot_2020-03-31_at_14.57.47.png to enter the communication settings.
  3. Use the on-screen keyboard and drop-down lists to enter Ethernet Communication settings and select green tick to accept the information. Enter here the Relaymed Software Agent host IP and port.
  4. Select "Enable Host" > "Ethernet", and enter the Device ID using the on-screen keyboard.
  5. Select "Auto Transmit - Patient" and select the type of sample from the options to be automatically transmitted.
  6. Select Transmit DIFF Scatterplot and/or Transmit RBC and PLT Histogram - not required for Relaymed. Can be turned off.
  7. Select green tick when prompted to confirm your selection.
