Abbott CELL-DYN Emerald

Configuration Guide

Configuration Stages

To configure the Abbott CELL-DYN Emerald to connect to Relaymed the following configuration stages are required:

  1. Configure the Host Output Communication Mode of the Abbott CELL-DYN Emerald.
  2. Configure Patient Information Settings on the Abbott CELL-DYN Emerald.
  3. Add device to Relaymed Link or Relaymed Software Agent.

Stage 1: Configure the Host Output Communication Mode

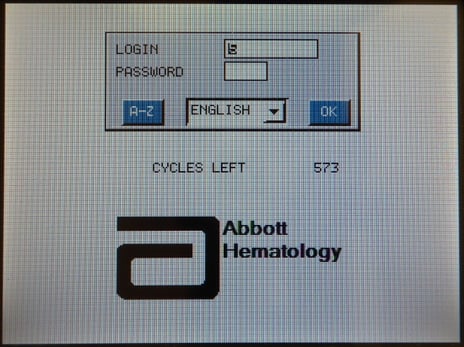

Step 1: From the Abbott CELL-DYN Emerald Login screen enter the Operator ID and Password for a "Tech User"

Abbott CELL-DYN Emerald Configuration Guide ()_360036653491

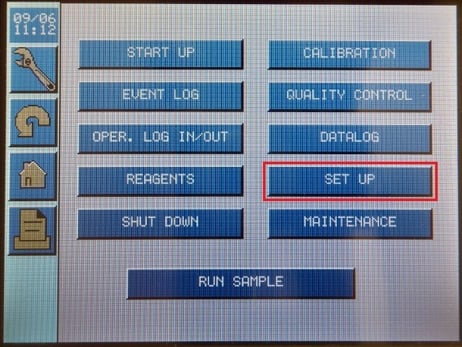

Step 2: From the Main Menu press the "SET UP" button.

Abbott CELL-DYN Emerald Configuration Guide ()_360036653451

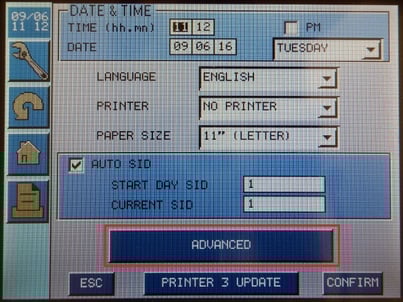

Step 3: From the Set Up Menu, press the "ADVANCED" button.

Abbott CELL-DYN Emerald Configuration Guide ()_360036653571

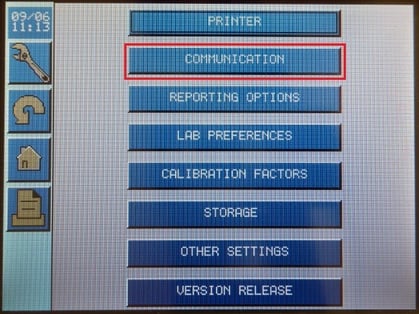

Step 4: From the Advanced Menu, press the "COMMUNICATION" button.

Abbott CELL-DYN Emerald Configuration Guide ()_360036653391

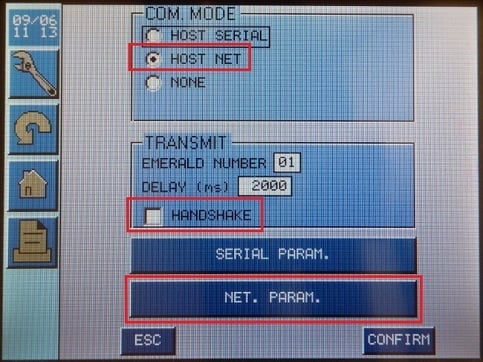

Step 5: On the "Communication" screen configure the following options:

  • COM. MODE Configuration:
    • Select "HOST NET"
  • TRANSMIT Configuration:
    • Check "HANDSHAKE" is NOT selected.

Then Select "NET. PARAM."  to continue the Network Configuration.

Abbott CELL-DYN Emerald Configuration Guide ()_360036653431

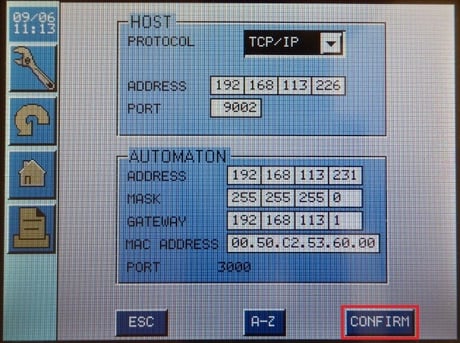

Step 6: On the "Network Parameters" screen configure the following options:

  • HOSTConfiguration:
    • PROTOCOL: "TCP/IP"
    • ADDRESS: Static IP address allocated to the Relaymed host.
    • PORT: Port used to communicate with Relaymed.

  • AUTOMATION Configuration:
    • ADDRESS: Assign an IP address strictly used only for this device.
      *If the IP address assigned is already in use by another device, the connection will be unsuccessful.
    • MASK: Subnet mask for the network where Relaymed is installed.
    • GATEWAY: Gateway for the network where Relaymed is installed.

Note: IF using Lantronix Adaptor SERIAL PARAM will has to be selected and HANDSHAKE has to be enabled.

Then Select "CONFIRM"  to Save the Network Configuration.

Abbott CELL-DYN Emerald Configuration Guide ()_360036653531

Step 7: On the "Communication" screen select "CONFIRM"  to Save the Network Configuration.

Abbott CELL-DYN Emerald Configuration Guide ()_360036653431

Stage 2: Configure Patient Information Settings

Step 1: From the Abbott CELL-DYN Emerald Login screen enter the Operator ID and Password for a "Tech User"

Abbott CELL-DYN Emerald Configuration Guide ()_360036653491

Step 2: From the Main Menu press the "SET UP" button.

Abbott CELL-DYN Emerald Configuration Guide ()_360036653451

Step 3: From the Set Up Menu, press the "ADVANCED" button.

Abbott CELL-DYN Emerald Configuration Guide ()_360036653571

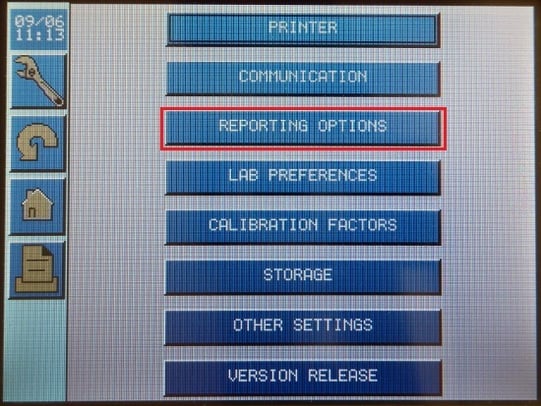

Step 4: From the Advanced Menu, press the "REPORTING OPTIONS" button.

Abbott CELL-DYN Emerald Configuration Guide ()_360036660252

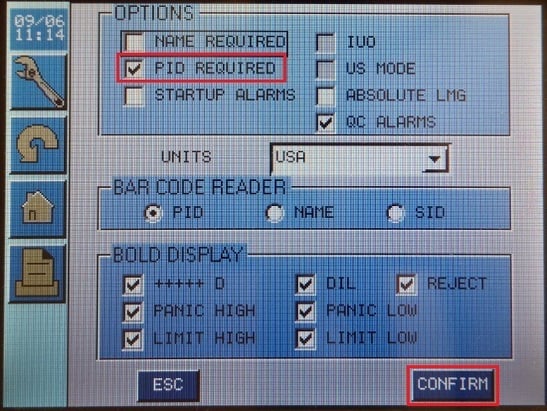

Step 5: On the "Reporting Options" screen configure the following options:

  • PID REQUIRED: Enabled

Abbott CELL-DYN Emerald Configuration Guide ()_360036653551

Then Select "CONFIRM"  to Save the Configuration.

Stage 3: Add Device to Relaymed Link or Relaymed Software Agent

For practices using the Relaymed Link, log in to your Relaymed Portal and follow these steps:

Adding a Device to Relaymed Link

For practices using the Relaymed Software Agent, open the server or PC where the agent is installed and follow these steps:

Adding a Device to Software Agent

Note: The Abbott Emerald port number must be five points away from any other device.
