Abaxis Piccolo Xpress USB

Configuration Stages

To configure the Abaxis Piccolo Xpress to connect to Relaymed the following configuration stages are required:

1. Abaxis Piccolo Xpress connection configuration.
2. Add device to Relaylink.

Stage One: Connection Configuration

To configure the Abaxis Piccolo Xpress please follow the following steps:

Step 1: From the main menu select the hand icon.

Step 2: Select the hand icon with the right arrow to navigate to the next screen.

Step 3: Select the communication settings icon.

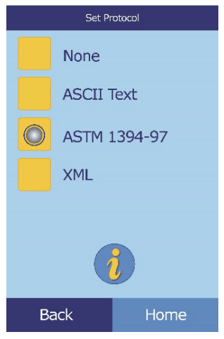

Step 4: Set the protocol to 'ASTM 1394-97'.

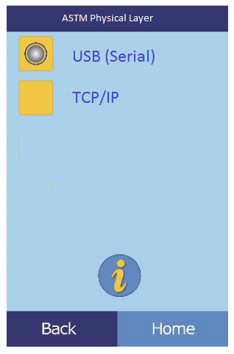

Step 5: On the 'ASTM Physical Layer' screen select 'USB (Serial)'

Step 6: Select 'Home' to Save the settings and return to the Piccolo Xpress Home screen.

Stage Two: Add Device to Relaylink

To add the Abaxis Piccolo Xpress to the Relaylink follow the Add USB device to Relaylink guide

Troubleshooting:

If the Piccolo fails to connect via USB connection then you may want to attempt a driver update on the computer the device is connected to.
